Program overview

<< Click to Display Table of Contents >>

Navigation:

Program overview

Previous pageReturn to chapter overviewNext page

Interface structure

Info

The description of the control elements refers to the Default view. You can set these under Workspace / Default.

AquaSoft Stages contains a large repertoire of tools with which you can work on your project. The following graphic provides an overview of the most important control elements. You will find that here objects are often talked about. Objects are all elements that can be added to a project, such as images, text, music, video, flexi-collages and more.

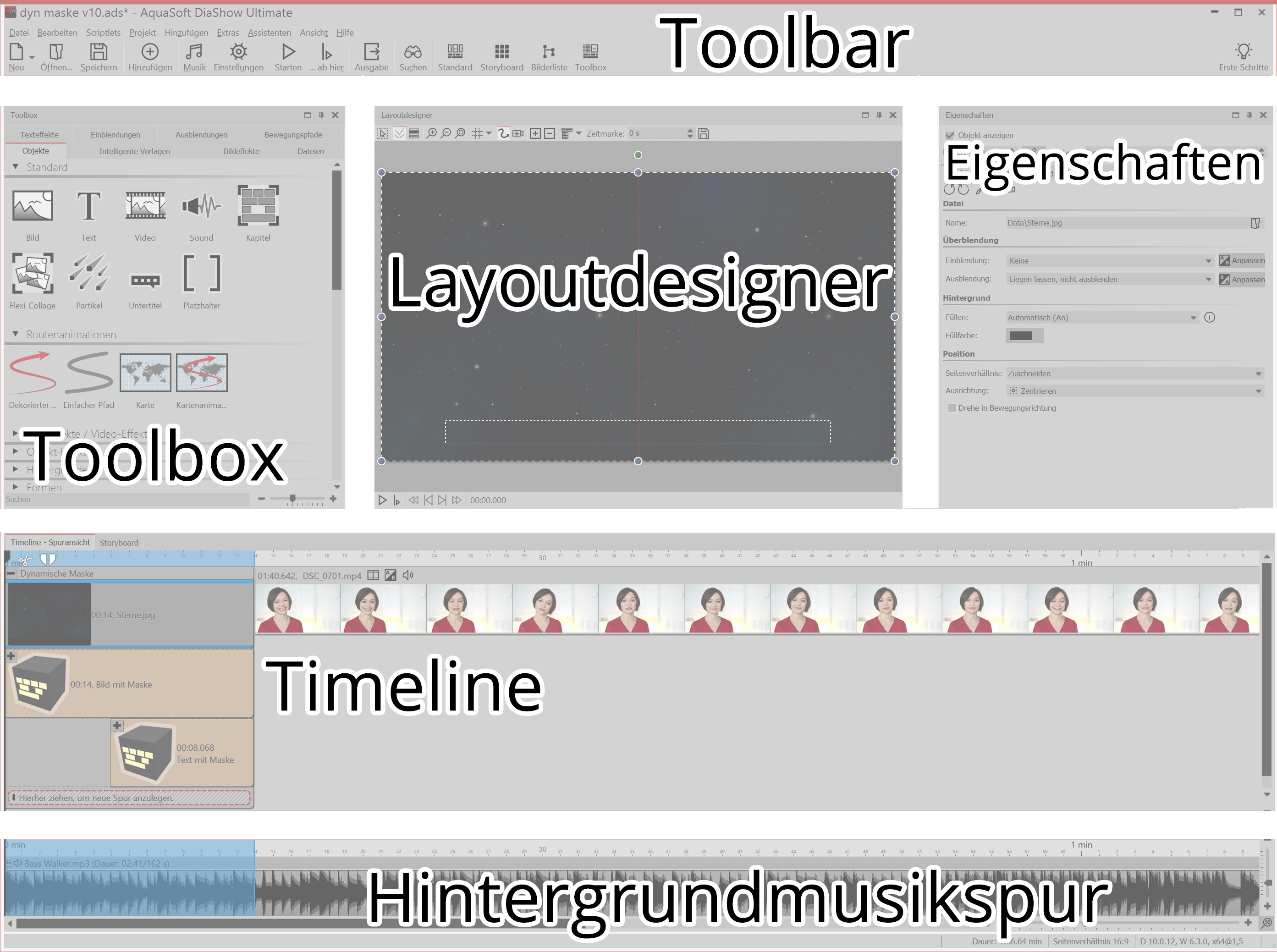

Program view

Areas of the program

The toolbar

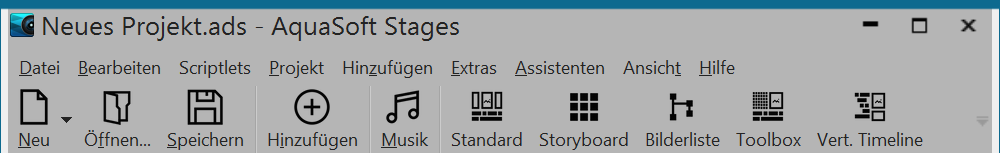

Toolbar

Toolbar at the top of the user interface

TBr_New

Creates a new, empty project.

TBr_Folder

Opens a previously saved project.

TBr_Disk

Saves your project.

TBr_Plus

Inserts images into your project.

TBr_Notes

Opens the menu for inserting background music.

TBr_Settings

Opens the project settings. These settings apply only to the currently open project.

TBr_Play

Play your presentation from the beginning.

TBr_PlayFromHere

Play the presentation from the marked spot.

TBr_Export

Opens the output wizard for creating CDs/DVDs.

TBr_Search

Lets you search for text, file names and keywords in your projects.

View_Layout

Loads the Default view of the program.

View_Storyboard

Loads the Storyboard view of the program.

View_ImageList

Loads the Image list view of the program.

View_Default

Loads theToolbox view of the program.

View_VertTimeline_ST

Loads theVertical Timeline view of the program.





Object properties

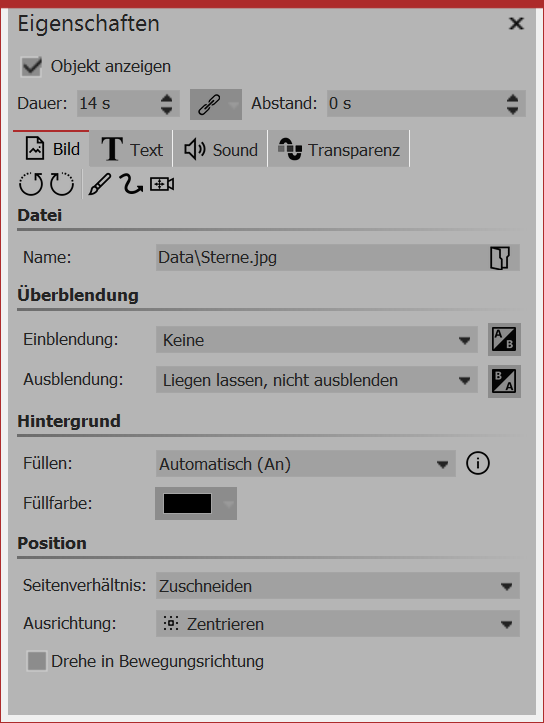

Image object properties

Image object properties

Each object has certain properties, that are displayed when you click on the image in the Image list, Timeline or in the Storyboard. In the example, the properties of an image object are displayed.

Here you can, for example determine the display time (under duration) of your image and the type of fade in and out.

Under Text you can label the image and specify the text format.
Under Sound you can assign a self-recorded commentary or sound to the image.
Under Transparency you can set a transparency curve.

The individual objects and their properties are described in detail in the chapter “Object properties".

The File browser

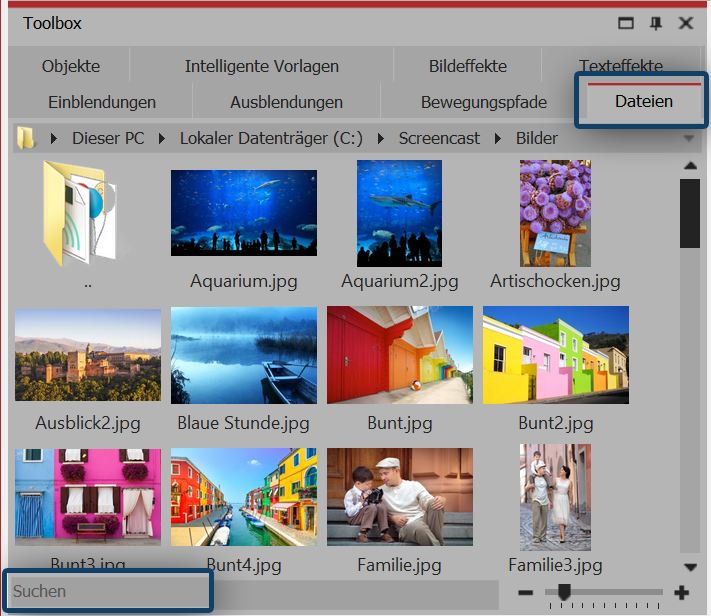

Filebrowser in the toolbox

Preview of your data in the file browser

In the Default view you will find the File browser on the left hand side. Find it in the Toolbox via the files tab. Here you can select a drive or directory where your videos, sounds or images will be located. Drag the files from the File browser into the Timeline or into the Layout designer.

In the upper row you can see, similar to Windows Explorer, the file path.
Zoom in on the preview images using the slider located at the bottom right.

Int the Search field you can search for file names that are in the currently opened folder. This means that you do not have to scroll for long to find the desired image or video.

Insert images from the File browser by dragging them into the Layout designer or dragging the images into the Image list or Timeline.

Info

If you click here with the right mouse button on a file, you will see the context menu, as you would in Windows. Here you can, for example, open the file in an external application to edit.
