The Timeline

<< Click to Display Table of Contents >>

Navigation:  Program overview

The Timeline

Previous pageReturn to chapter overviewNext page

With the help of the Timeline, you coordinate the timing of your images, texts, sounds and videos. So you can display several elements simultaneously or at different times. In the Timeline it is possible to create multiple tracks. You implement this with the Chapter object. You will find the Chapter in the Toolbox under Objects. To find out how to create multiple tracks, refer to the chapter "Multiple Tracks“.

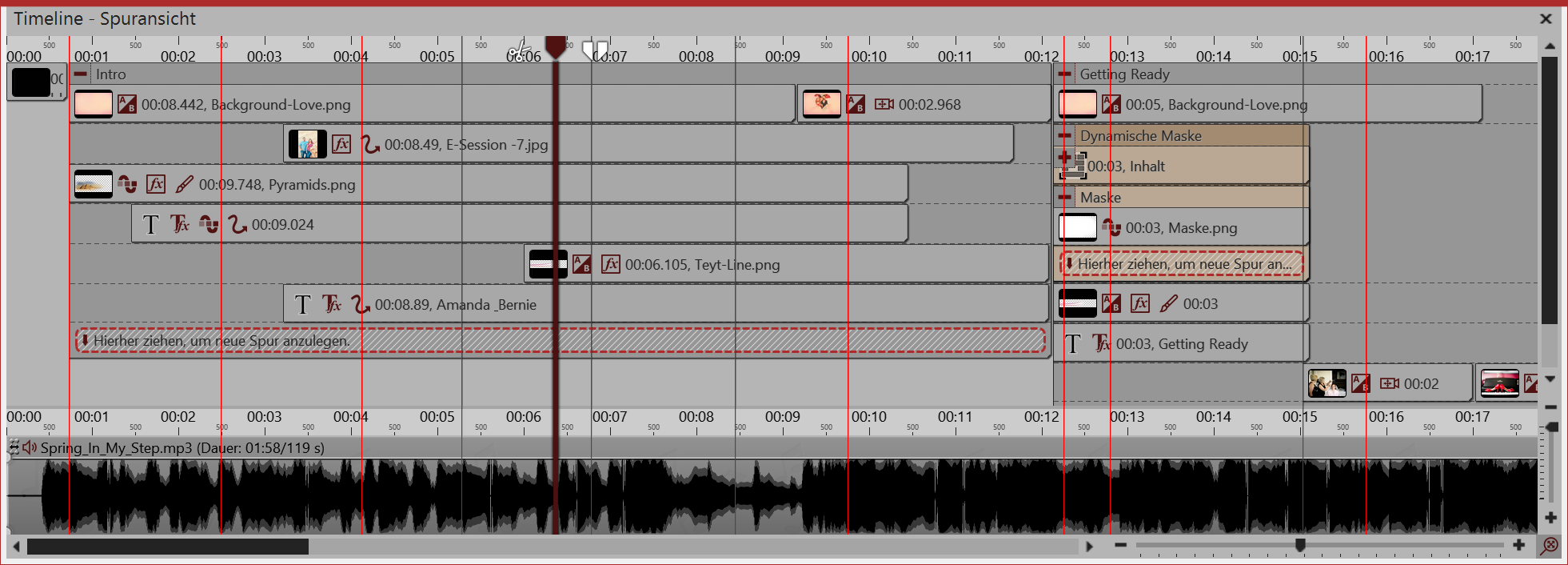

Timeline

Timeline with multiple tracks

Zooming in or out

In the lower right corner there are two small regulators, one vertical and the other horizontal. With these you can specify how high and how wide the Objects are displayed in the Timeline. You can zoom in or out of the Timeline with the help of the mouse wheel.

Changing the width;  Ctrl key  + mouse wheel

Changing the height:  Shift key+Ctrl key+ mouse wheel

Navigating in the Timeline

Using the mouse wheel you can navigate in the Timeline:

Scroll horizontal: Only the mouse wheel

Scroll vertical:  Shift key  + mouse wheel

If there is a large number of Objects in the Timeline, it can be helpful to choose a smaller view, so as to obtain a better overview.

For a better overview, you can also collapse the open tracks. To do this use the small minus icon - find at the top left - which dictates which Track can be open for each Object.

Icons in the Timeline

In the Timeline you will also be able to see which effects, animations etc are assigned to which Object. This can be identified by the small icons that are displayed on each Object in the Timeline. The following symbols are available in the AquaSoft Stages:

Timeline_Icon_Transition

Cross-fading

Timeline_Icon_BitmapFX

Image effect

Timeline_Icon_Text

Text without animation

Timeline_Icon_MovementPath

motion path

Timeline_Icon_TextAnimation

Text with animation

Timeline_Icon_CameraPan

Camera panning

Timeline_Icon_Video

Video file

Timeline_Icon_Sound

File containing sound

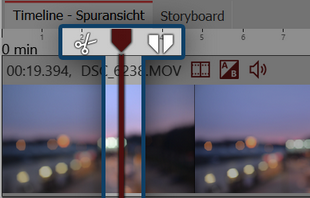

Play "from here" with the Playhead

Playhead

Playhead shows playhead

In the Timeline you will find a vertical line, with which you can set the Playhead. This line is called "Playhead". At the top of the Playhead you will see two icons which you can use as cutting tools (more on this in the Chapter "Cutting videos").
Drag the Playhead or click with your mouse on the Timeline at the point you want to start the Preview and then click on the "From here” button.

Program settings

Timeline settings

Under Extras / Program settings / Timeline you can configure the Timeline further.

Here you can adjust the stopping behavior and the display of the Timeline. If you want to place an object directly below another object or at a certain time, the stopping behavior can help you with the exact positioning of objects.

Additionally you can set the old "From here" playback for the Preview, which was standard prior to version 10.

Markers in the Timeline

Timeline_Music5.psd

Background music tracks in the Timeline

Press the  Shift  and click on the time axis in the Timeline (see picture left). You will see a red line that you can move with the mouse. The line goes across your inserted objects and the Background music track.

You can also set markers while the project is in progress as a preview in the Layout designer. Press the SPACE BAR always at the point at which you want to insert a marker.
To delete a line you only need to click with the right mouse button on the relevant line.
The markers act magnetically and help you align your images in multiple Timeline tracks, or matching to musical beats.
