Motion paths > Motion paths with rotations

Motion paths with automatic rotations can be used on image objects, Flexi-Collages and video objects.

Images, Flexi-Collages and videos can also be made to rotate automatically on the motion path. In this way you can make an object on a motion path automatically and precisely rotate in its direction of movement. Activate this option in the properties window under position (see the figure below). As is illustrated, the magnifying glass is automatically rotated with the motion path.

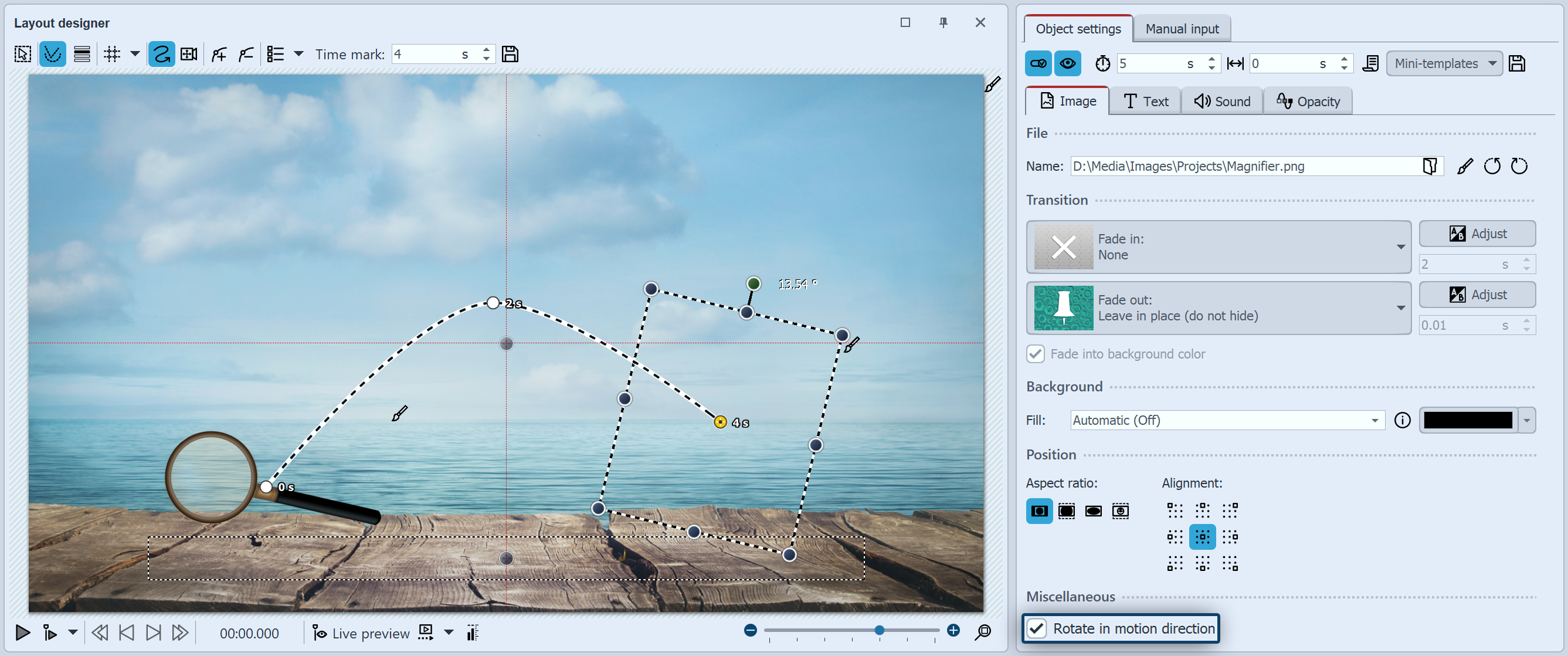

View of the Layout designer and Properties

Rotating the motion path

Rotation of the entire motion path

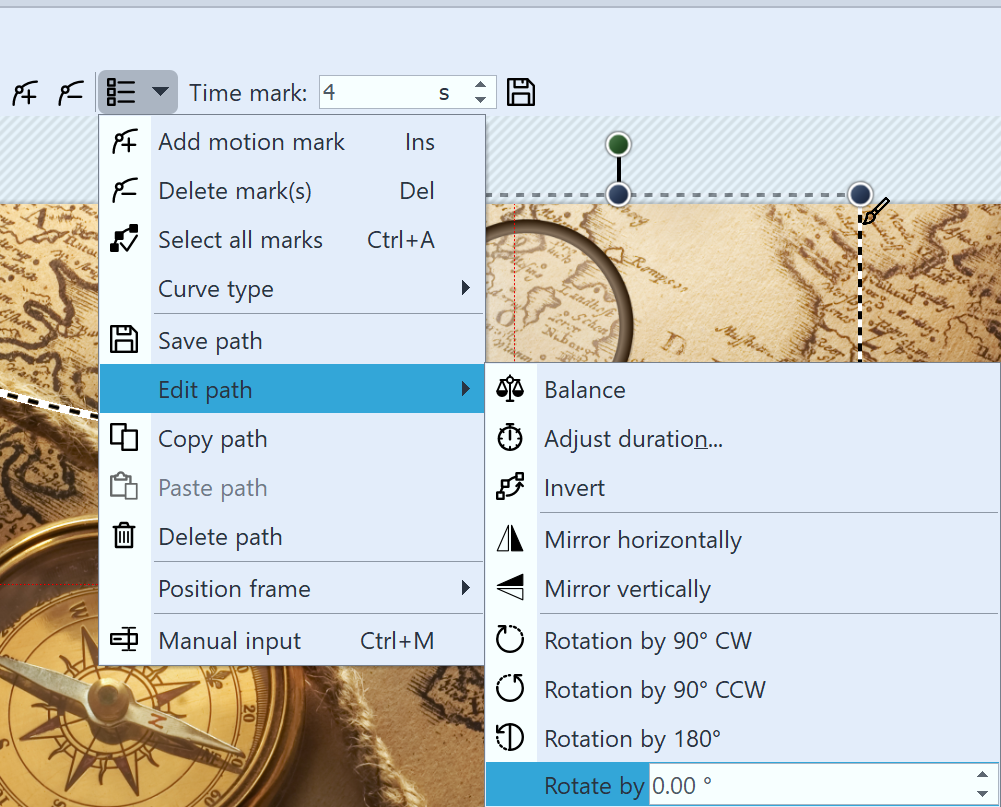

Instead of animating objects with the motion path, in AquaSoft Vision the entire motion path can be rotated. Right click the motion path in the Layout designer to open the context menu. There select Edit path, and here you will find various options for rotating the entire motion path.
