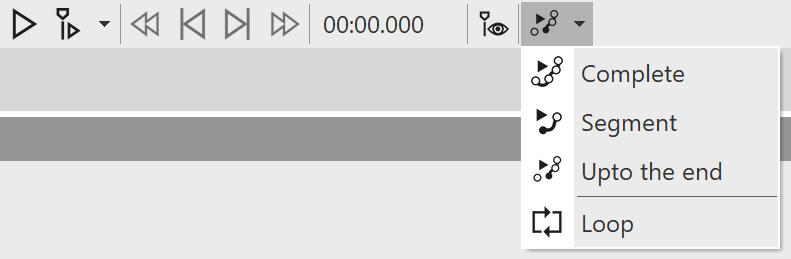

Motion path preview in Player control

Motion path preview in Player control



In Stages you have the option to play back the motion path of an object even while you are adjusting it.

To use the preview, select a mark of your motion path and use the small triangle on the right of the icon to select one of the three playback options. Then click the motion path preview icon to start or stop playback.

Complete

Plays the entire motion path.

Segment

Plays a specific segment of the motion path.

Upto the end

Plays the motion path from the selected mark to the end.

Loop

Repeats the selected movement (Complete, Segment or Upto the end).
