Project settings

Previous pageReturn to chapter overviewNext page

The project settings can be individually changed for each project.

Under Project / Settings you can access the window for the project settings. You can also access the settings directly via the TBr_Settings button in the menu bar.

Basic settings:

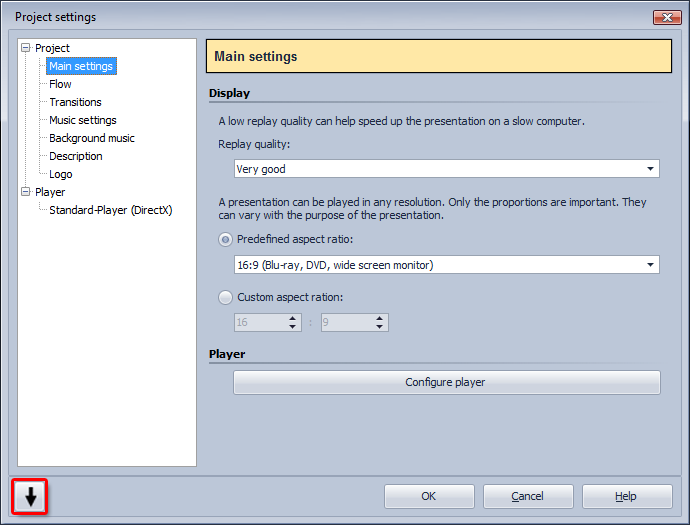

Dlg_DSSettings_Main

Here you can change the Standard exposure time of your images, as well as select a Random playback sequence for your images.

You can adjust the "display quality" according to the performance of your computer here. The higher the quality the higher is the required performance. This setting is of no importance during the creation of the video. It concerns the quality when replaying the show using the AquaSoft SlideShow Player. If the "display quality" is too high for your PC this can lead to a jerky replay experience of your presentation.

You can likewise set the Aspect ratio of your show here. Should this not correspond to the aspect ratio of your images, you will get edges or you fit your images into the desired aspect ratio.

For the Standard Player (DirectX) a DirectX 9c-compatible graphics card with at least 64 MB memory is required. It is also mandatory that you use the manufacturer’s current graphics card driver!

You will find settings for the corresponding SlideShow Player further on in this section.

Presentation flow:

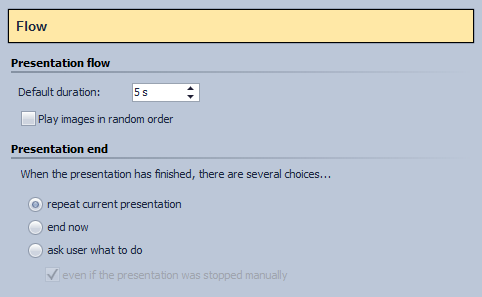

Dlg_DSSettings_Flow

Here you can change the Default duration of your images, as well as select to Play  images in random order.

Presentation end:

Dlg_DSSettings_End

Here you can decide what is supposed to happen at the end of the presentation played back. Do you want the presentation repeat itself or stop after the first run? You can also let the viewer decide.

Transitions:

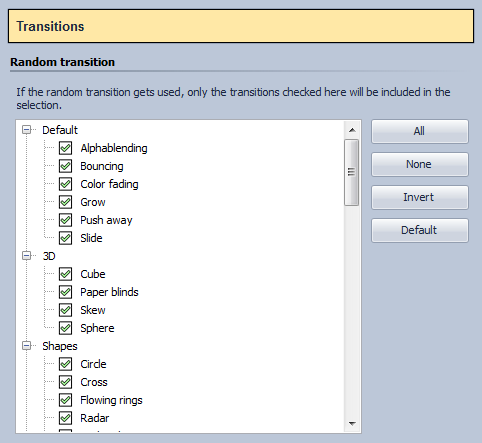

Dlg_DSSettings_Transitions

Here you can select which transitions are supposed to be included in the Random transition. All those with green check marks are included, all those with a red cross are not included.

Music settings:

The music settings are explained in further detail here.

Background music:

The topic of background music is dealt with in detail here.

Description:

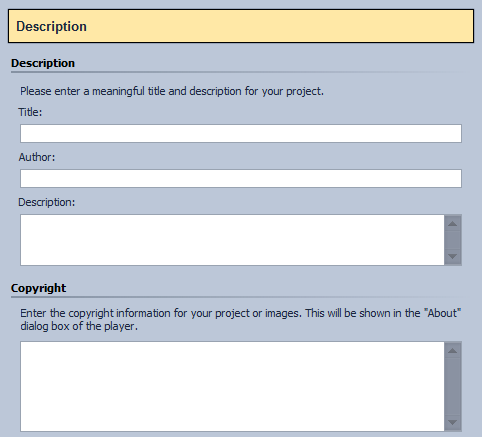

Dlg_DSSettings_Description

You can individually personalize your project. Here you can specify a title, author and a description of your project.

Logo:

Dlg_DSSettings_Logo

If you want to start your presentation with a Logo you can select and image here. You can also simply omit a logo.

Standard player:

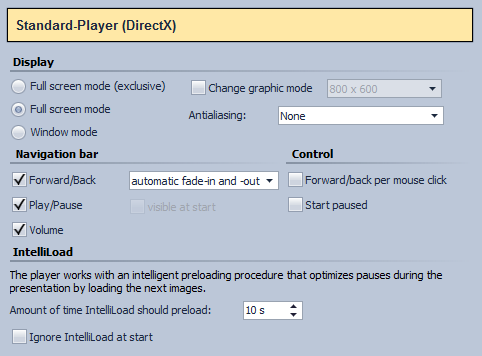

Dlg_DSSettings_StandardPlayer

The AquaSoft SlideShow Player takes on the task of playing back a presentation. Here you can decide the settings for it.

Select here if you want the show to be replayed in full screen or window mode.

Use the settings for Antialiasing to remove ugly artefacts at the edges. The best way to recognize the difference is by rotating a black square in front of a white background and closely watching the edges. If the option is set to Automatic the level with the highest possible quality will be used. The other option cause 2x,4x,8x,16x oversampling of the image, with correspondingly increasing effort. This requires a lot of computing power of the graphics board and can lead to jerkiness at high resolutions and older and cheaper boards. Nonetheless, the gain of quality is, depending on the displayed contents, remarkable. Older graphic boards should be used with the option None.

You can also specify the setting for the Navigation bar, i.e., how and when you want it to be displayed.

Under Control you can select if you want the show to be started automatically after clicking Play or if you want it to wait for an input, i.e., if you want manually control your show. You can also activate the option to control the image change with the mouse.

The IntelliLoad specifies how many seconds of the show should be loaded in advance.

If you want to use the selected settings as default for every new project then click As default. These settings will then be automatically assigned to all future projects. By clicking the button Original settings you can reset all settings to the factory values.
