Output as video

Previous pageReturn to chapter overviewNext page
Video formats in the Video Wizard (Ultimate)

Video formats in the Video Wizard (Ultimate)

In the AquaSoft SlideShow and Stages you have many different options to create a video from your project. Therefore, there is something suitable for almost every purpose and for every end device. Below is an overview of the video formats you can output.

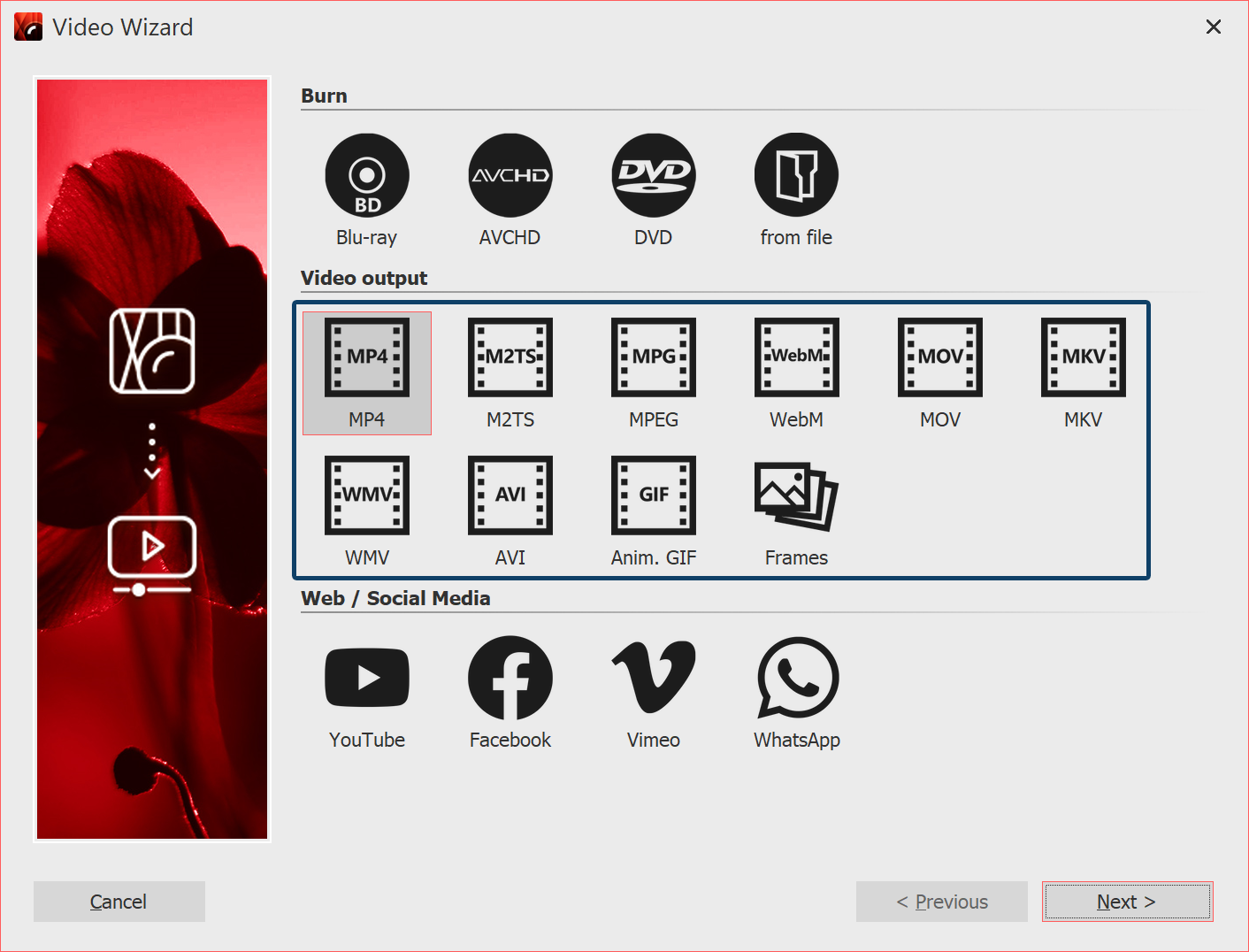

1 Call Video Wizard

To access video creation, call up the Video Wizard via the Wizards menu. Then, under Video output, select the video format you want. If you are not sure which video type best suits your output device, see Section 3 "Which video format suits which output device?" for an overview that can help you make your selection.
You can create the following video formats:

MP4

Container format based on Apple QuickTime file format. Works well for TV, tablets and smartphones.

M2TS

Containerformat for Blu-Ray Disc video

MPEG

Video format for DVD videos

WebM

Container format for the Internet,  Ultimate   Stages  possible with transparency

MOV

Container format of the Apple QuickTime Player

MKV

Open source container format for almost all available video formats

WMV

Part of the Windows Media Framework, supported by all current Windows versions

AVI

Container format from Microsoft. Should never be output uncompressed and is only suitable for professionals who want to use special encoders.

2 Video settings

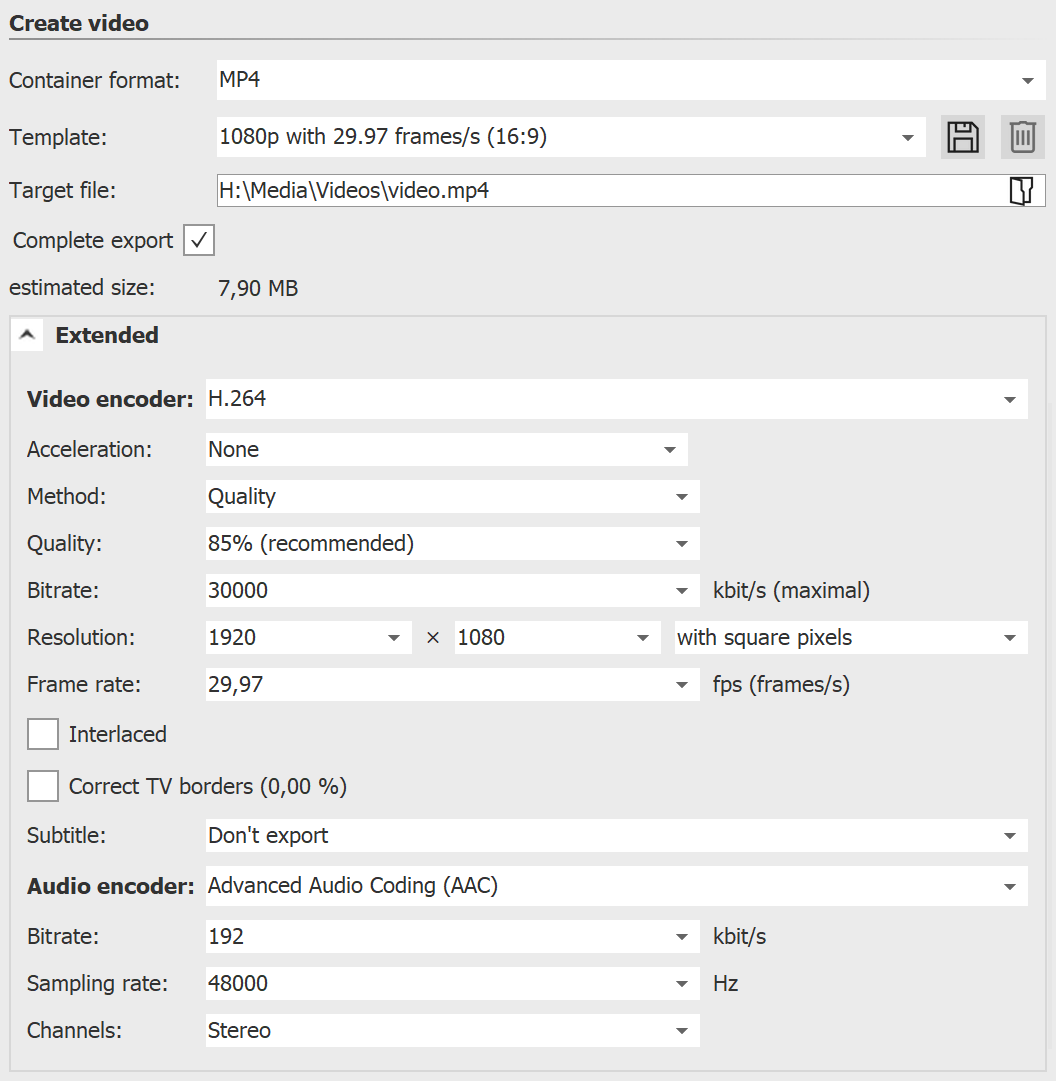

Video Wizard with extended settings (Ultimate)

Video Wizard with extended settings (Ultimate)

For each video type, the Video Wizard already provides settings. Under Template you only have to select which resolution you need - the Video Wizard does the rest for you. Under Target file you specify in which directory the video file should be saved, here you can also give the file a name.

 Ultimate   Stages
If you still want to make changes, you have full access to the settings in the Extended section. Click the Plus icon in front of Extended to open the settings.

Option

Meaning

Container format

Here you can once again change the file format.

Template

Here you can choose from various presets that fit specific devices.

Target file

Select the location of the file here by clicking on the folder icon.

Estimated size

Specifies approximately how large the created video file will be.

Video encoder

Selection of different codecs to compress the video file.

Acceleration

Here you can enable hardware accelerated encoding (run Search for acceleration hardware first if necessary).
If none is selected, only software encoding is performed.

Method

Quality selection: Here you specify the display quality. The higher the value here, the larger the file. At 85% the highest display quality is already reached. You can select 100% if you want to further process the video in another application and the generation loss should be reduced when rendering again. For normal videos, the setting with 100% should not be used, because you have an extremely large file volume, but visually would not provide any added value.
Bitrate selection: The video is generated with a variable bitrate.
Selection const. Bitrate: The video is created with a constant bitrate.

Bitrate

Data volume output per second

Resolution

Number of pixels in height and width

Pixel aspect ratio / with square pixels

For the pixel aspect ratio, the preset "square pixels" can usually be retained. This setting is relevant only for the special case of DVDs, since their image size of 704 × 576 or 720 × 576 corresponds neither to 4:3 nor to 16:9.

If you now create an MPEG video for a DVD, for example, you must first select the appropriate template (e.g. DVD (PAL, 16:9)) according to the selected slideshow format, and the pixel format is then automatically adjusted to "fit 16:9 presentation".

Frame rate

Number of frames per second

Correct TV borders

Some TVs cut off the edges of the film. How much this happens varies from device to device. To make the full image visible, the wizard can reduce the image. You can also set different edge distances for this.

Interlaced

Half-frame process to make movements appear more "fluid".
Should only be activated when outputting for tube TVs.

Audio encoder

Selection of different codecs to compress the audio file. Selecting "No audio" creates a video without sound.

If you want to save your own settings for later use, click on the Save icon behind Template.

symbol-info

Deepen your knowledge on the topic of "Creating Video" in our blog post "Videoerzeugung – Diashow als Video ausgeben".


3 Which video format fits which output device?

For all devices for which you want to create a video, you should first take a look at their operating instructions. There are almost always listed the video formats that the device can play. The video formats given here are only recommendations, not all devices accept these formats reliably.

Device

Video format

Smartphone, Tablet PC

MP4 with H.264/H.265 encoder (other formats possible, observe operating instructions of the device!)

TV-Gerät

MP4 with H.264/H.265 encoder, M2TS (other formats possible, observe operating instructions of the device!)

Multimedia-Festplatte

MP4 with H.264/H.265 encoder, WMV, M2TS (other formats possible, observe operating instructions of the device!)

PlayStation Vita/Portable

MP4 with H.264 encoder

Apple-Geräte

MP4 with H.264 encoder, MOV with H.264 encoder (other formats possible, observe operating instructions of the device!)

4 Save video to USB stick

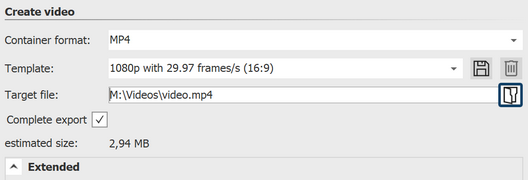

Click folder icon

Click folder icon

Click the folder icon under Target file. Choose a location on your computer that you can easily find again. After creating the video, you can then transfer it from the location to the USB flash drive.

Alternatively, you can also choose the USB stick as the storage location.

symbol-hint

The way of formatting a USB flash drive plays an important role if the created video file is larger than 4GB.
If the USB stick is formatted with FAT32, it cannot store files larger than 4GB.
It is possible to format the USB flash drive to NTFS. In this case, all data stored on it will be lost. However, after that you can save larger files on it.
You should definitely also check beforehand which formatting the playback device (e.g. the TV or Blu-ray-Player) can handle.

5 Output video for web page

The various export options make it easy for you to publish your presentation on your own homepage or on the web. The video can either be stored at a video portal or on your own web space. The advantage of the video portal is that you already get a Player that can play the video. By means of an easy-to-copy code, you can embed the video on your homepage with little effort.

See the "Web/Social Media" chapter for more information.

If you want to make the video available on your own storage, you need your own Player to play the video directly. Some video formats are played by current browsers (you may need to install an extension) even without a Player, this includes the WebM video that you can create using the Video Wizard.

Dlg_VideoWizard_Final

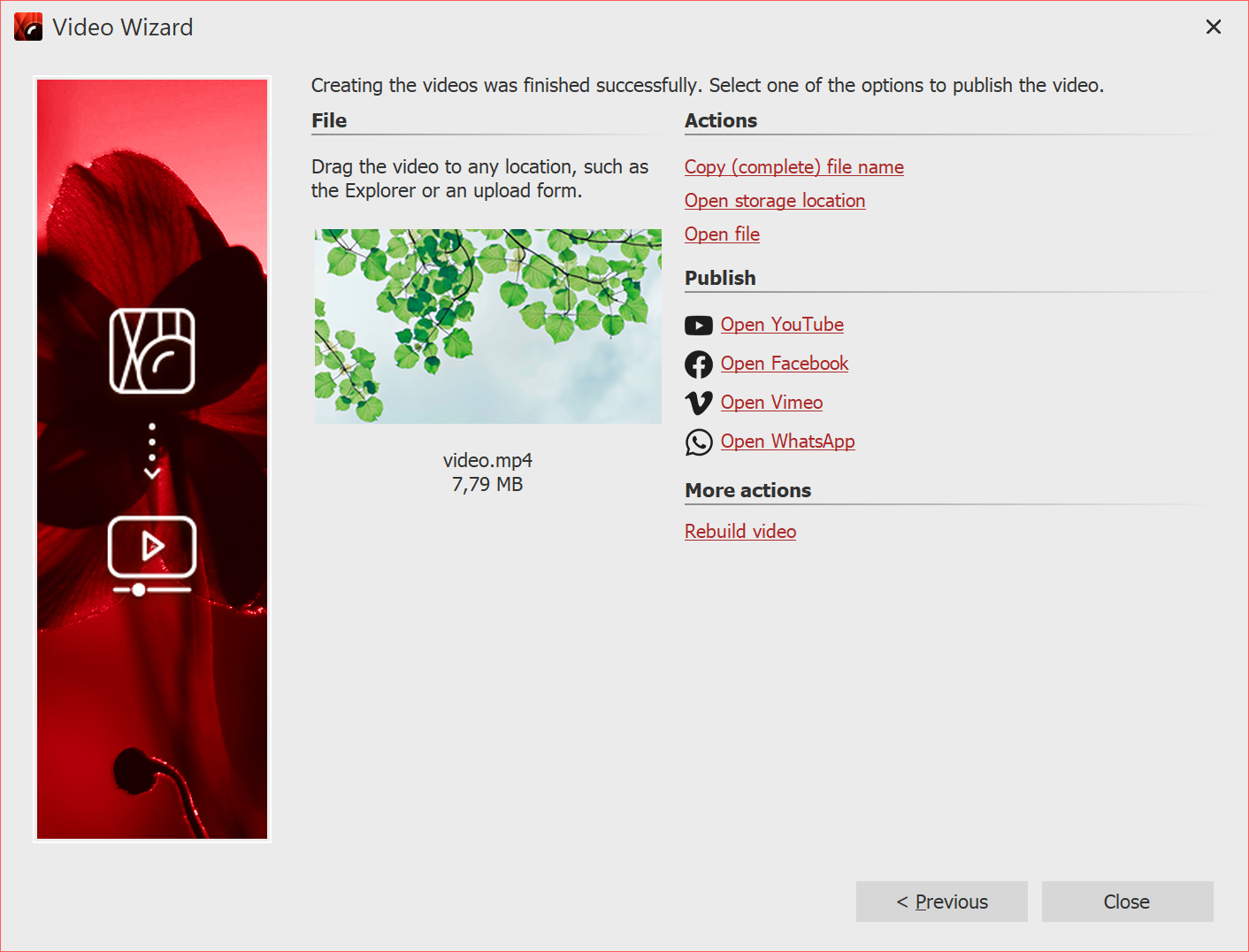

6 Output result

If the video was created successfully, you can play, process or share the result.

Start playback by double-clicking the video thumbnail or via Open file.
