Labelling an image

<< Click to Display Table of Contents >>

Navigation:  Texts and labels

Labelling an image

Previous pageReturn to chapter overviewNext page
Properties

Inputting text to an image

In the properties section of an image and text object there is a text tab.

Info

If you cannot see the properties window, right click on the image and select the option properties from the context menu.

You can also find this via view - controls - properties.

1. Entering text in the properties window

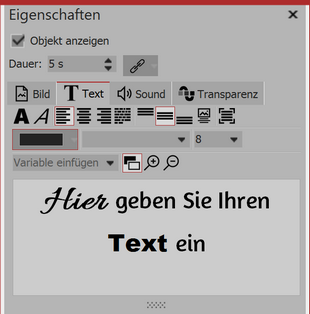

To label an object, go to properties and click on the “text” tab.

In the text field you can enter text and adjust the formatting - font, font size and color. Under orientation, you have the following options for the positioning of your text:

Props_Text_bottom

Position the text at the bottom of the selected frame.

Props_Text_middle

Position the text in the middle of the selected frame.

Props_Text_top

Position the text at the top of the selected frame.

Props_Text_free

Fits the text to the frame (font size is reduced if applicable)

Props_Text_belowImage

The text appears at the bottom edge of the image. This also applies when the image is reduced in size.

In the text box, type the desired caption for your image. Select the font and size. If you wish your text to be a specific color, you can select this via the color selection (this is located on the right, next to the font size).

2. Controlling the length of time it takes for the text to fade into the key frame.

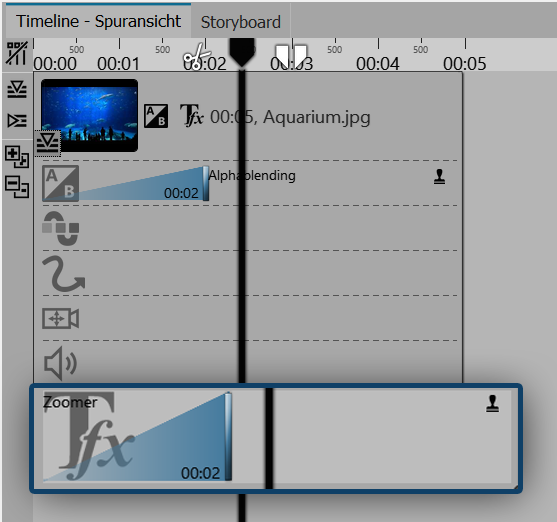

Keyframe text

Keyframe track for text animation



Hint

This feature is only available in AquaSoft Stages.

In Stages you can control the duration of the text fading in or out via the key frame track. Just open the key frame track and click in the track for the text animation.
Here there is a fade-in and out for each key frame (assuming it is activated), and you can use this to control the end of the fade in as well as the beginning of the fade out.

SnapTip

You can find out how to underline your text in our SnapTip "underlining text".
