The Layout designer

Previous pageReturn to chapter overviewNext page

In the Layout designer you can see a preview of your presentation. Here you can see how images and text are displayed on the screen. The Layout designer is your work surface for where you place objects. Slide images, videos, texts and more to the preferred location and use the drag points to make them bigger or smaller. In the Layout designer you also specify the sequence of Motion paths and Camera Pans.

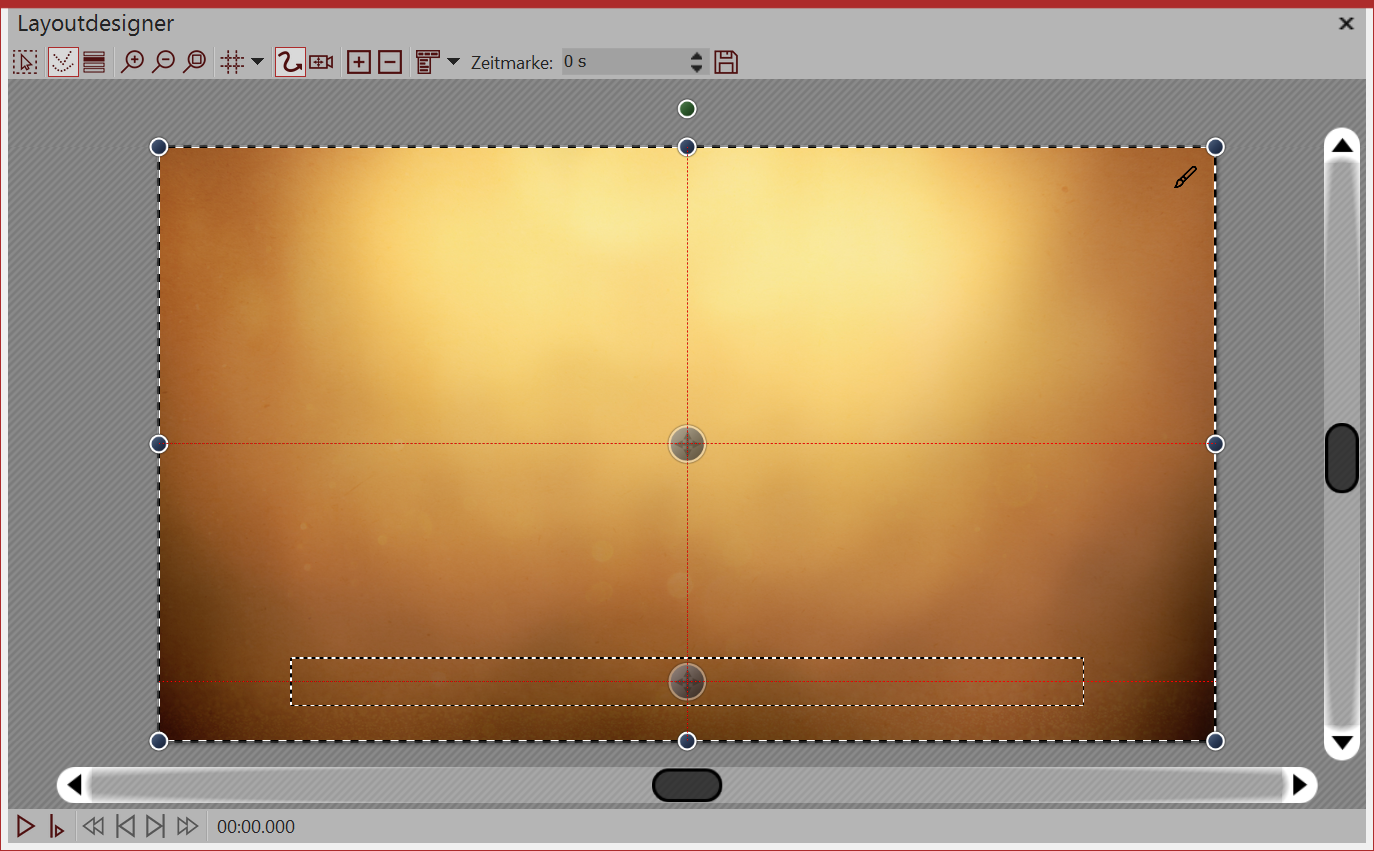

Layout Designer

Preview in Layout Designer

The following symbols are available in the Layout designer:

LABr_SelectionFrame

Sampling frame can be pulled over the entire area of the Layout designer in order to select multiple objects.

LABr_Multiselect

Displays Paths and path points of all selected objects.

LABr_Conceal

Displays objects that would obscure those selected.

LABr_ZoomIn

Zooms into the Layout designer.

LABr_ZoomOut

Zooms out of the Layout designer.

LABr_ZoomToOrigin

Resets the standard view / size of window.

LABr_Raster

Selection of the grid, to which you can align the images and objects.

At the lower edge of the Layout designer you will find buttons which control playback behavior.

LABBr

LABBr_Play

Plays the presentation from beginning to end.

LABBr_PlayFromHere

Plays the presentation from the point at which the playhead is located.

LABBr_LiveView

Activates Live-Preview (only in Stages)

LABBr_LiveView_Path

See the preview of the motion path directly in the Layout designer and edit the motion path whilst this runs. This function is only available in SlideShow Ultimate.

If you play the presentation in the Layout designer then the bar changes.

LABBr_Playing

LABBr_Pause

Pauses playback.

LABBr_Stop

Stops playback.

LABBr_JumpToPreviousObject

Jumps to previous image

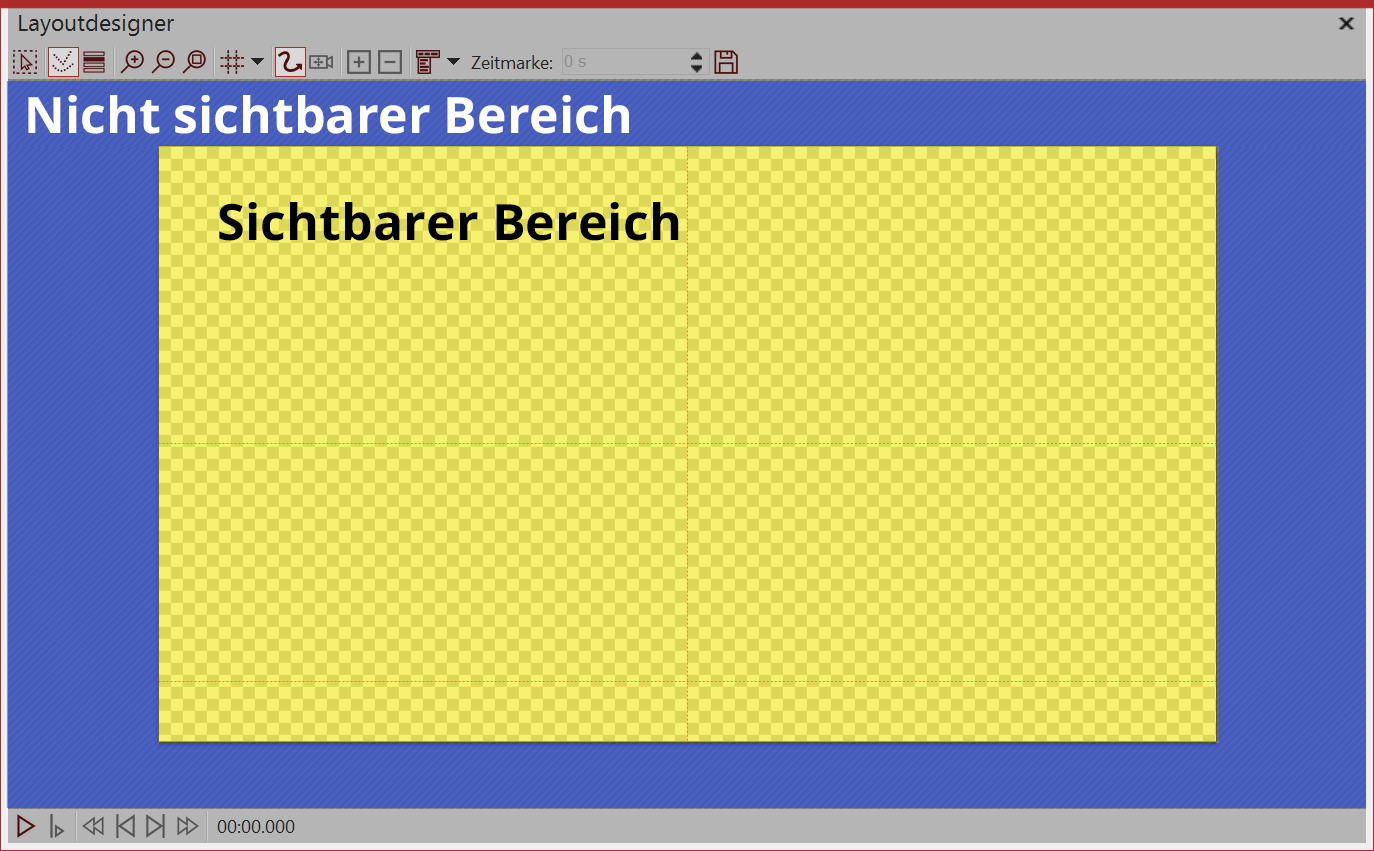

Sections in the Layout designer

Visible area

Sections in the Layout Designer

The Layout designer has two sections. The visible section contains all elements which are later visible when playing the Presentation. The elements which are placed in the non-visible section are not visible when you play the presentation. The non-visible section can be used to lead Paths of Motion over the edge of the image. This means that elements in your Project can fly in or out of the visible section. Movements can take place outside the visible section and then move into the visible section. In this way you can have images and texts for example moving from left to right across the screen.

With the magnifying glass icons in the Layout designer you can zoom in and out of the visible section.

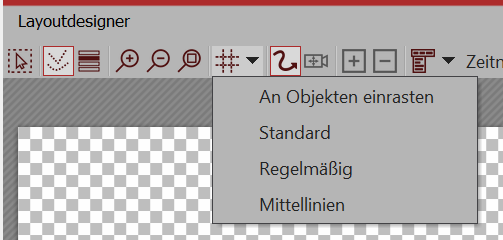

Grid in the Layout designer

Grid options

Grid options

In the Layout designer you can superimpose a Grid. There are several options:

Snapping to Objects

Objects, such as images or text orientate towards Objects which already exist in the Layout designer and snap onto them.

Standard

The grid is divided to fit the Aspect Ratio

Regular

The grid's squares have the same height and width

Center line

A horizontal and vertical center line is indicated

Phi-Matrix

Displays the golden section lines

All grids can be combined with one another. Select the different grid options and in front of each active option you will see a check mark. You can deactivate the option with a click.

Controlling the view in the Layout designer

You can control zooming in and out in the Layout designer with the magnifying glass symbol, but also with the combination of the  Ctrl  key and turning the mouse wheel.
